Stack and Heap: How a Program's Memory Actually Works

Two rooms every program ignores

It doesn't matter what language you write in: while it runs, your program splits its memory into two fundamentally different regions — stack and heap. Most of the time you don't think about them, until performance, an unexpected crash, or the behavior of the garbage collector forces you to. And yet, really understanding the two explains a lot at once: why some allocations are "free" while others trigger the GC, why deep recursion crashes, why the value/reference distinction matters. The topic is language-agnostic — same RAM, same rules. We'll tie it back to Swift and Dart along the way.

First the map: how a program divides memory

When a program starts, the operating system hands it an address space and carves it into regions (going from high to low addresses):

• Stack — where call frames live; grows downward.
• Heap — where dynamic objects live; grows upward. The two share the gap between them.
• Data / BSS — globals and statics; fixed for the program's lifetime.
• Code (text) — the program's instructions; read-only.

The critical point: stack and heap live in the same physical RAM. The difference between them isn't hardware, it's how they're managed.

Stack: fast, automatic, disciplined

The stack is where function calls do their work. When a function is called, a stack frame is pushed onto it: locals, the return address ("where do I jump back when I'm done"), and a link to the previous frame. When the function returns, that frame is popped — and most of the time that pop isn't a physical erase, it's just moving the stack pointer back. The structure is LIFO (last-in-first-out).

Properties:

• Allocation is nearly free: you just move a pointer.
• Lifetime is automatic: when the function returns, the frame is gone; you don't manage it.
• It's very fast: because it's small and local, it nearly always sits in the cache, close to the CPU.
• It's per-thread: every thread has its own stack.
• It's bounded: a few MB. Deep or infinite recursion overflows it — that's exactly what a stack overflow is.

The stack trace you see in a crash is, in fact, a snapshot of this stack at that moment: a chain of frames saying "who called me."

Heap: large, flexible, but with a cost

The heap is for data whose size or lifetime you can't know at compile time, or that needs to outlive the function that created it.

Properties:

• Allocation is more expensive: you ask an allocator for space; nothing as cheap as a pointer bump on the stack.
• You (or the runtime) decide its lifetime: the data lives until someone frees it.
• It's slower: because the data is scattered, the CPU often has to go back to RAM (cache misses).
• It's shared: all threads can reach the same heap — which is why data races are born here.
• It needs cleanup: manual (C), reference counting (Swift's ARC), or garbage collection (Dart, Java). The cost: fragmentation, allocation overhead, and either leaks or GC pauses.

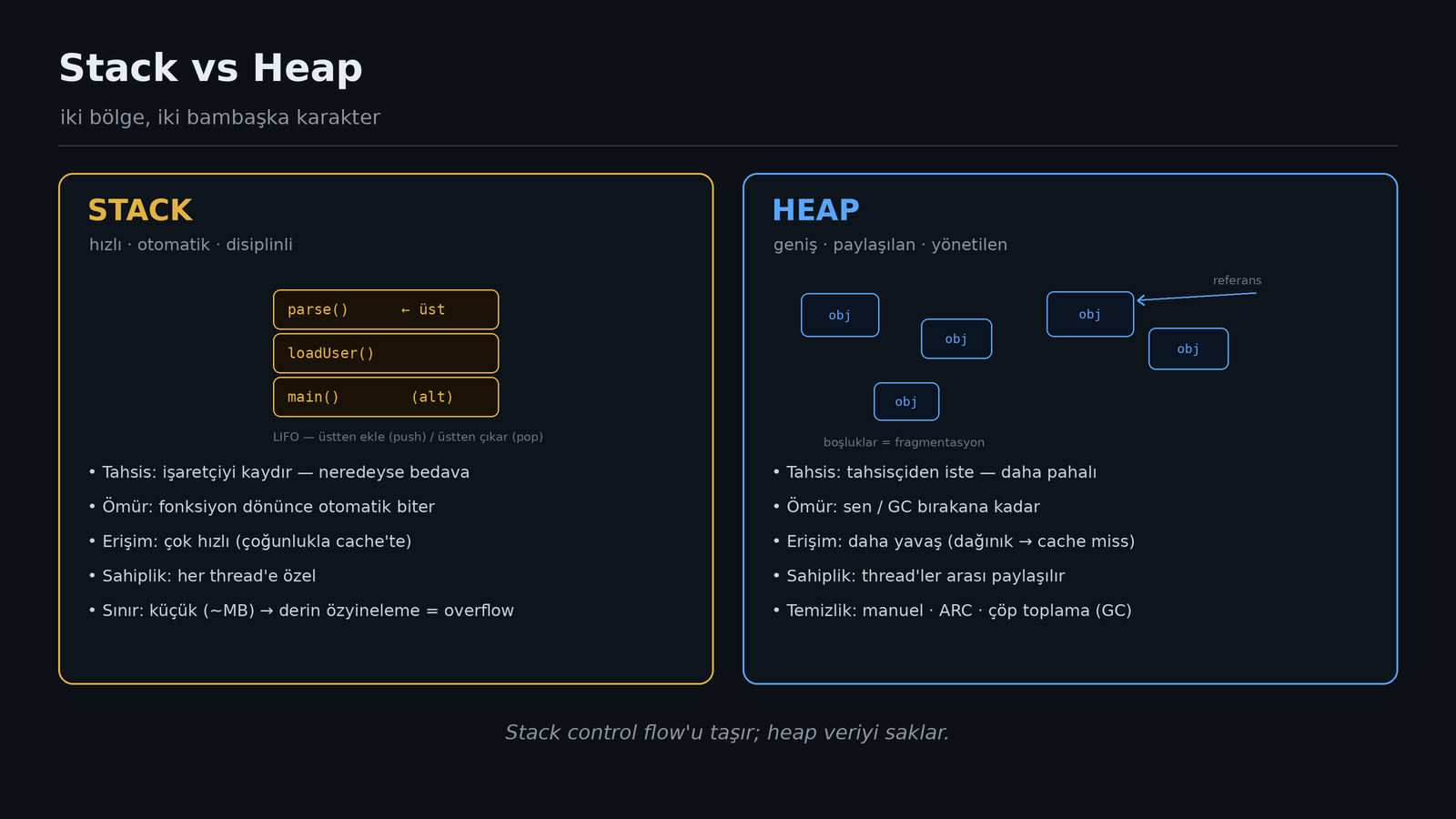

Stack vs heap, at a glance

	Stack	Heap
Allocation	move the pointer (one op)	ask the allocator (expensive)
Lifetime	ends when the function returns (auto)	until you/GC release it
Speed	very fast (cache-friendly)	slower (scattered)
Size	small (~MB)	large
Ownership	per-thread	shared

In short: the stack carries control flow; the heap stores data.

How languages use this: value or reference?

The real lever a language gives you is this: can you hold a value inline (embedded in place, usually on the stack), or only behind a reference (a pointer, on the heap)?

Swift gives you both. A struct is a value type: its data is copied and stored inline; small structs can live on the stack or be embedded inside another object without any heap allocation. A class is a reference type: the object lives on the heap, and a small reference to it sits on the stack or in a register. Heap objects are managed by ARC (automatic reference counting) — deterministic, but every retain/release is an atomic operation. A small trap: Array, String, Dictionary are value types, but they use a heap buffer + reference counting underneath (copy-on-write).

struct Point { var x, y: Int }    // value     → inline
class  Node  { var next: Node? }  // reference  → heap

let p = Point(x: 1, y: 2)          // data lives right here (stack)
let n = Node()                     // object on the heap, reference on the stack

Dart has no struct — every class is a reference type. So the body of your objects lives on the heap, with references on the stack.

class Point { int x, y; Point(this.x, this.y); }

var p = Point(1, 2);  // object on the heap, reference on the stack
var n = 42;           // small int → inline (Smi), never hits the heap

The "everything's on the heap" misconception

Two things to clarify here so you don't drift into a wrong mental model.

First, "everything is an object/reference" ≠ "everything is on the heap." Dart keeps small integers (Smi — small integer) directly inside the pointer via pointer tagging; they never go to the heap. In optimized code doubles can stay in registers (unboxed), and escape analysis can sometimes eliminate allocations entirely.

Second, and more importantly: every language uses the call stack, regardless of the value/reference divide. Even in Dart, function calls, return addresses, and the references themselves live on the stack. The recursion of a deep widget tree's build() runs entirely on the call stack (and can overflow it). Reference types move the body of an object to the heap; they don't eliminate the stack. So "Dart only uses the heap" is wrong: object data leans on the heap (because there are no structs), but flow, references, and small values use the stack at full speed.

So does this determine performance?

Don't overstate it. Value types reduce heap allocation and GC pressure on hot paths, and give you control — a real advantage in tight loops, particle systems, audio/signal processing. But they aren't "always faster": large structs are expensive to copy; copy-on-write hides a sneaky heap allocation plus atomic reference counting; ARC's atomic retain/release isn't free; Dart's generational GC, meanwhile, allocates short-lived objects very cheaply (almost a pointer bump in the young generation). On top of that, in real apps performance is usually decided not by a language's stack/heap leanings but by architecture, I/O, and rendering discipline. "More control" is not the same thing as "always faster."

A mental model

If you have to squeeze it into one sentence: the stack is a fast, automatic, per-thread work area for calls (flow + locals + references); the heap is a large, shared, managed store for long-lived and dynamic data. Languages diverge on how much of the data you can hold inline (value) vs. behind a reference (heap) — Swift gives you the choice (struct/class), Dart leans on references. But both use both regions; the stack never disappears. Knowing which is which explains allocation cost, crashes, GC, and value-vs-reference trade-offs all under one model.
